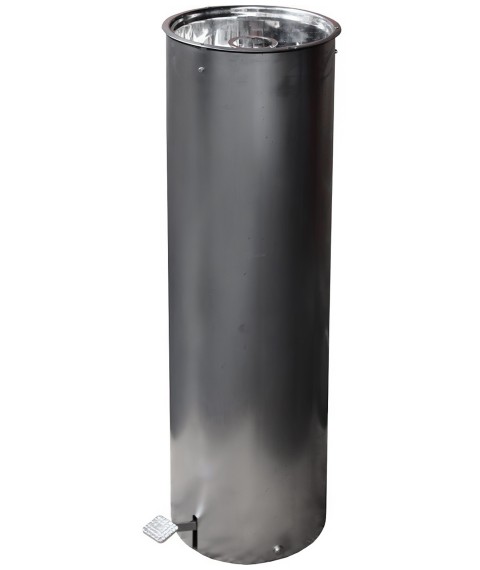

Drinking fountain FPNzh-1

Drinking fountain FPN-1 (hereinafter referred to as the fountain) is designed for the purification and distribution of drinking tap water and can be installed in industrial, domestic and administrative premises, in schools and other educational institutions, as well as in public places where there is a need to organize drinking water supply. Operating ambient temperature from +5 °C to + 45 °C and relative air humidity up to 85%. The materials used in the filter are safe, non-toxic and do not release substances hazardous to human health and the environment into the water. The fountain should be installed on a flat horizontal surface. The fountain is secured using self-tapping screws through 3 mounting holes (Ø 10 mm) located in the bottom of the fountain body. To do this, you need to unscrew the 3 M8x12 screws located at the bottom of the case and remove the case from the bottom. The length of the hose and tubes allows them not to be disconnected from the connecting elements. Technical characteristics of the drinking fountain: Nominal capacity - 120 l/hour; Water filter - 1-stage; Filter resource - no more than 8000 l; Weight - 18 kg; Overall dimensions: Width - 270 mm; Depth - 270 mm; Height 1000 mm; Characteristics of the replaceable filter element: 1. Material – polypropylene foam. 2. Purpose – purification of water from mechanical impurities. 3. The filter element is highly resistant to bacteria and chemicals and eliminates mechanical contaminants (sand, rust, impurities). 4. Service life - no more than 6 months. Storage rules: The fountain should be stored indoors at an air temperature of 0...+45°C and relative humidity up to 80%. Sanitation requirements: The fountain service area must be free of foreign objects. The approach to the fountain should be unobstructed and free for employees of the enterprise to access. At least once a week it is necessary to wash the bowl to drain the water with a 0.5% aqueous solution of baking soda. At least once a month, observing safety precautions, the body and bowl for draining water should be sanitized. After a long break in the operation of the fountain (more than 10 days), it is necessary to rinse the filter with drinking water from the fountain by passing water through it for 5 minutes. Sanitation: Daily: Wipe the outer surfaces of the fountain with a dry, clean cloth. Once a week: Rinse the sink with a 0.5% aqueous solution of baking soda, temperature 35°C...45°C, then rinse with clean water at the same temperature. The water purification filter cartridge must be replaced after the amount of drinking water passes through it, according to the established resource, but at least once every 6 months.
