FEED PELLET MILL 22 KW

0 reviews Write a review

Seller	Artmash
Brand:	Artmash
Product Code:	GKP-22
SKU :	GKP-22
Availability:	In stock

Lead time : 10 days Contact with the seller

243,100.00₴

You cannot order more than what is available.

You can request a product via the "Contact with the seller" form.

Granulator of 22 kW for feed pellets from compound feed. Own production. Bearings of world-famous brands.

Model: GKP-22

Voltage: 400 V

Motor capacity: 22 kW, 1500 revolutions

Yield capacity:

feeds: 400 - 800 kg/h
sunflower waste: 400-500 kg/h
grain waste 400 - 500 kg/h

Pellet diameter: 2-8 mm

Pellet mill weight: 350 kg

Dimensions: 1300*500*1300 mm

Die diameter: 280 mm

✅ Certificate ECM

The granulator with an engine power of 22 kW, 1500 rpm is intended for the production of compound feed, fuel pellets (from sawdust, agricultural waste) in the form of granules with a diameter of 2-8 mm. It effectively copes with its task at a voltage of 400 V with a rated current of 45 A. Permissible moisture content of raw materials is up to 14%.

Features of feed granulator 22 kW

The body and working units of the granulator are manufactured at our factory, including red-hot matrixes and rollers. Electrics are purchased from trusted Ukrainian manufacturers. All rotating units use high-quality bearings of world brands ZKL, Kinex.

The main advantages:

Tapered rollers				provide +20% increase in productivity; increase the service life of the die by 2.5 times; serve twice as long as cylindrical rollers; wear out evenly, so old rollers do not degrade the quality of the pellets.

Three-level protection of the granulator motor				The following are built into the control cabinet: electronic current relay thermal relays ammeter

Hypoid skew transmission				ensures smooth running reduces noise without losing engine power

High wear resistance of rollers, matrices				manufactured at the plant LLC "Artmash" with a three-stage quality control we use tool alloy steel

Drilling, countersinking of dies takes place exclusively on CNC machines (with a computerized control system), therefore we exclude the appearance of defects (uneven holes, uneven jumpers between them, deformation of the matrix, etc.) providing you with high-quality, geometry-perfect parts.

After this, the matrices undergo heat treatment, are ground and ground. The hardness of the material on the Rockwell scale is 60 HRC, which corresponds to the hardness of the bearing.

Efficiency of 22 kW granulator

Equipment of this capacity is usually part of a line for and production of pellets from feed for sale or to provide its own livestock, poultry or fish.

The performance of such a granulator is:

⌾	feed - 500-800 kg/h;

⌾	on sunflower waste - 400-500 kg/h;

⌾	on grain waste - 400-500 kg/hour.

Productivity, in addition to the formulation of feed, is affected by the diameter of the granules, which are selected taking into account the needs of animals. The length of the granules is regulated by knives located under the matrix.

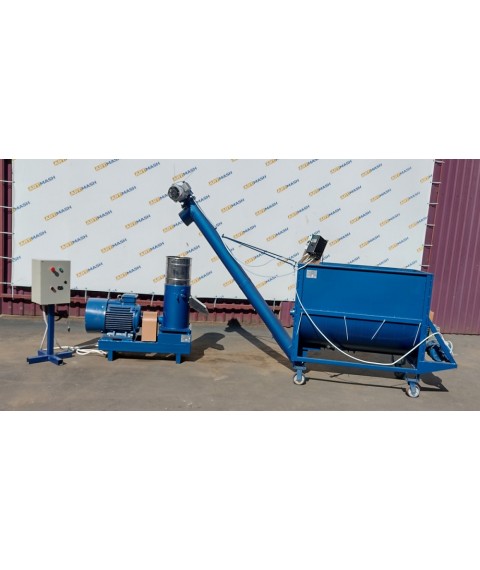

For more efficient operation of the equipment, we recommend using a granulator with a metered feed auger.

To order a 22 kW granulator for compound feed at the cost of the manufacturer, contact the managers. 12-month warranty, we also provide post-warranty service.

We organize delivery of equipment throughout Ukraine and abroad.

^* Attention. Product description can be obtained by machine translation.
