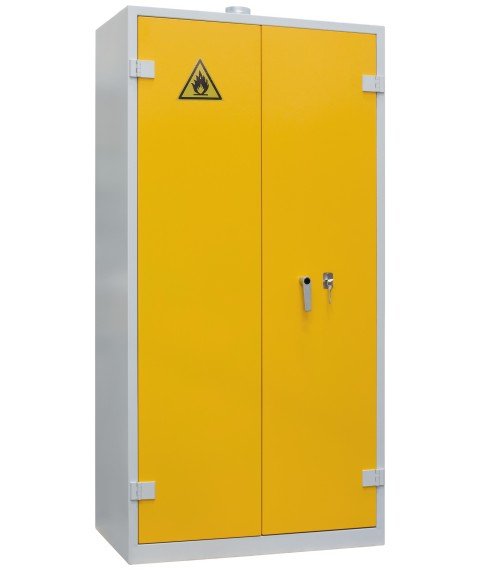

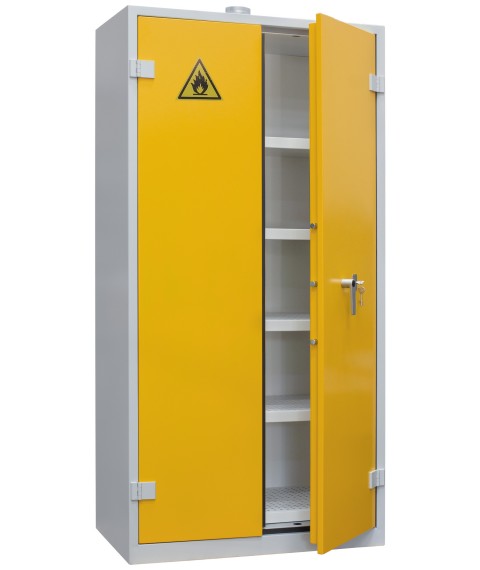

ShLR-10 N cabinet for flammable substances

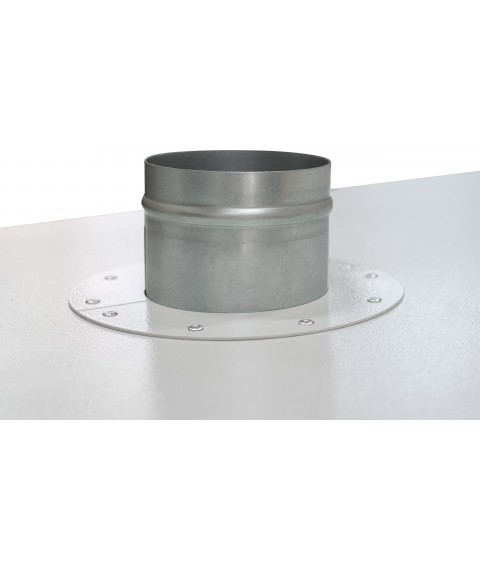

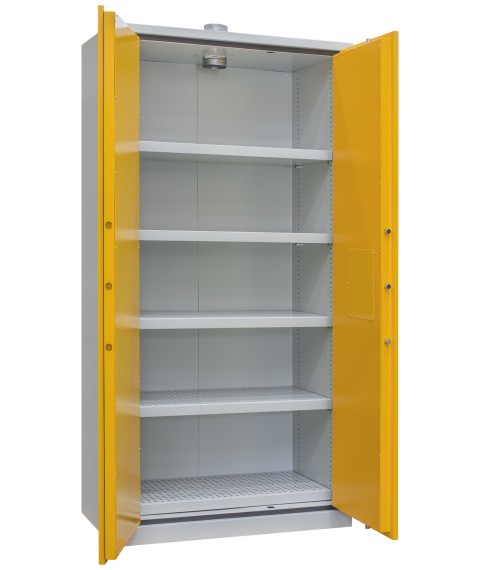

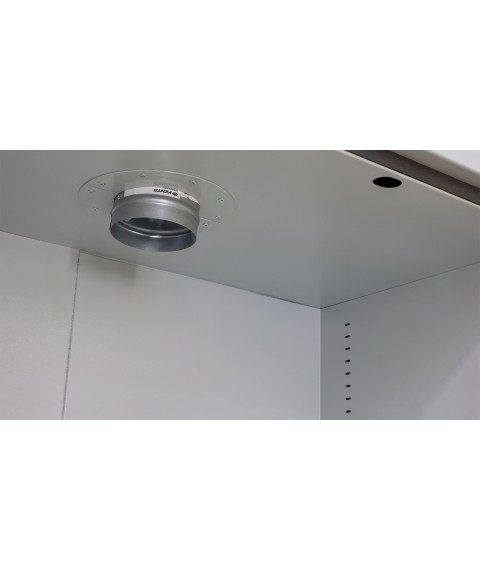

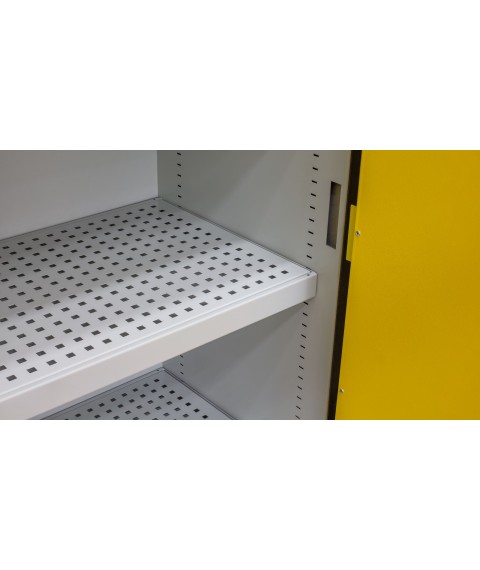

The cabinet for storing flammable liquids ShLR-10 N is intended for use in laboratories, service and paint shops and other premises. The cabinet is made of high quality sheet steel with polymer powder coating. The color of the cabinet body is Ral 7035 (light grey), the door color is Ral 1018 (yellow). The cabinet body and door have double walls filled with fire-resistant filler. The cabinet is equipped with a three-way bolt locking system, a special hinge design and drilling protection for the lock and crossbars, which is additional protection against unauthorized entry. Technical characteristics Overall dimensions, mm: Height – 1970; Depth – 520; Width – 1000; Tray volume, l. - 15; Number of shelves-trays, pcs. - 5; Load on the shelf-tray, no more, kg – 60. The cabinet design uses a thermal lock that prevents fire from passing inside the cabinet. The cabinet roof is equipped with a fire damper to prevent smoke and fire from spreading through the HVAC ducts during a fire. The valve is brought into operating position when the fuse link is activated and the temperature rises to 72 °C. The cabinet is equipped with five sealed shelves-trays with a volume of 15 liters, providing reliable protection against spilled substances. The trays have perforated tabs. The four upper tray shelves are height adjustable. The cabinet is used indoors at an air temperature of 0...+40°C and relative humidity up to 80%. Installed on a flat horizontal surface.
